Minimum footprint
Compact unit for small spaces which produces up to 1 kg/h
Energy saving
Energy-efficient adiabatic humidifier
Silent operation
Thanks to advanced ultrasound technology and fan modulation
Optimisation
Constant, efficient production and master/slave function for multiple units
Connectivity and IoT
RS-485 port which allows configuration from a PC, remote supervision and Wi-Fi connectivity for IoT uses
Remote viewing and diagnostics
Thanks to optional remote user interfaces with LED display or LCD graphic display with master-slave functions
Master/slave function
This function allows users to expand production capacity or centrally control several humidifiers using a single humidity probe. With one simplified connection, it is possible to operate a large number of units at the same time and in the same mode.
The optional remote user interface (EVJ) allows users to connect multiple humidifiers in an advanced master/slave configuration; the humidifiers work sequentially on a rotational basis, so maintenance can be performed on individual units without interrupting humidification.
- Automatic draining system, stops bacteria proliferating
- Protection against no inlet water
- Significantly less maintenance required when EHRO012 is installed – reverse osmosis water demineralisation system
- Built-in controller with LED user interface and capacitive touch keys
- Can be connected to humidity probes for proportional control
- Tank in self-extinguishing engineering plastic in compliance with Method A and Method C of ISO 846
Compact technology for indoor use or T/RH preservation
Cigar humidors and display cases, wine cellars and bottle coolers, air renewal units, fan coils, refrigerated units and cold rooms
Ideal in the following applications
| Models | EHUC001M2 |
|---|---|
| STEAM PRODUCTION | |
| Production capacity [Kg/h] | 1,0 |
| ELECTRICAL PROPERTIES | |
| Power consumption [W] | 110 |
| Power supply [Vac, Hz] | 100...230, 50/60 (power switching) |
| WATER PROPERTIES | |
| Inlet water quality | Demineralised/drinking water |
| Inlet water conductivity [μS*cm] | 0 - 1250 |
| Inlet water hardness [°f] | 0 - 50 |
| Inlet water pressure [MPa/bar] | 0,02...1 / 0,2...10 |
| Inlet water connection | John Guest 8mm |
| GENERAL CHARACTERISTICS | |
| Dimensions [mm] | 107,4x262,7x148 |
| Weight [kg] | 1,7 |
| Operating conditions [°C,RH] | 1...40, max. 90% non-condensing |
| Storage conditions [°C,RH] | -10...70, max. 95% non-condensing |
| Degree of protection | IP20 |
| REGULATION | |
| Type of controller | Built-in |
| Command signal | ON/OFF, proportional 0-10 V, transducer 4...20 mA |
| CONNECTIVITY | |
| RS-485 MODBUS | Built-in |
| CONTROLS | |
| EV3K61XLESRB | 74x32 mm remote user interface, 4 touch keys, 2-row LED display, power supply 24 VDC |

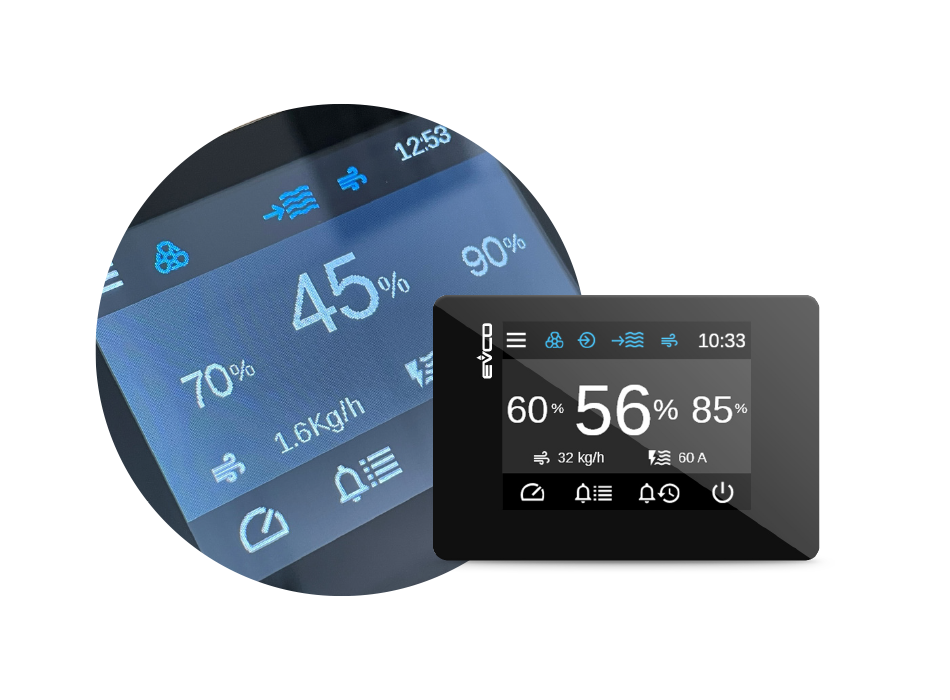

| EPJC940G4EXSB01 | 3.5 " user interface, touch-screen TFT graphic display, power supply 24 VDC - for master/slave operation |
| EVHTP520 | humidity and temperature probe, proprietary signal |
| EVHP523 | humidity transducer, power supply 8... 28 VDC, 1 x 4-20 mA provided signal |
| EVHTP523 | humidity and temperature transducer, power supply 8... 28 VDC, 2 x 4-20 mA provided signal |
| REVERSE OSMOSIS SYSTEM | |
| EHRO012 | 12 l/h reverse osmosis system |
| VARIOUS | |
| EHUK007 | metal support for EHUC001M2 |
| EHUK008 | metal box for EHUC001M2 |
| EHUK009 | suction kit for EHUC001M2 |
| EHUK011 | water drain kit for EHUC001M2 |
| UHFK02 | distribution kit diameter 50 mm for EHUC001M2 and UHF (2 x vertical distributors 1 m long, 1 x 45 degree fitting, 1 x 87 degree fitting); also usable s additional suction kit to EHUK009 |
| EHTF008 | transparent technopolymer tube diameter 8 mm (per meter) |
