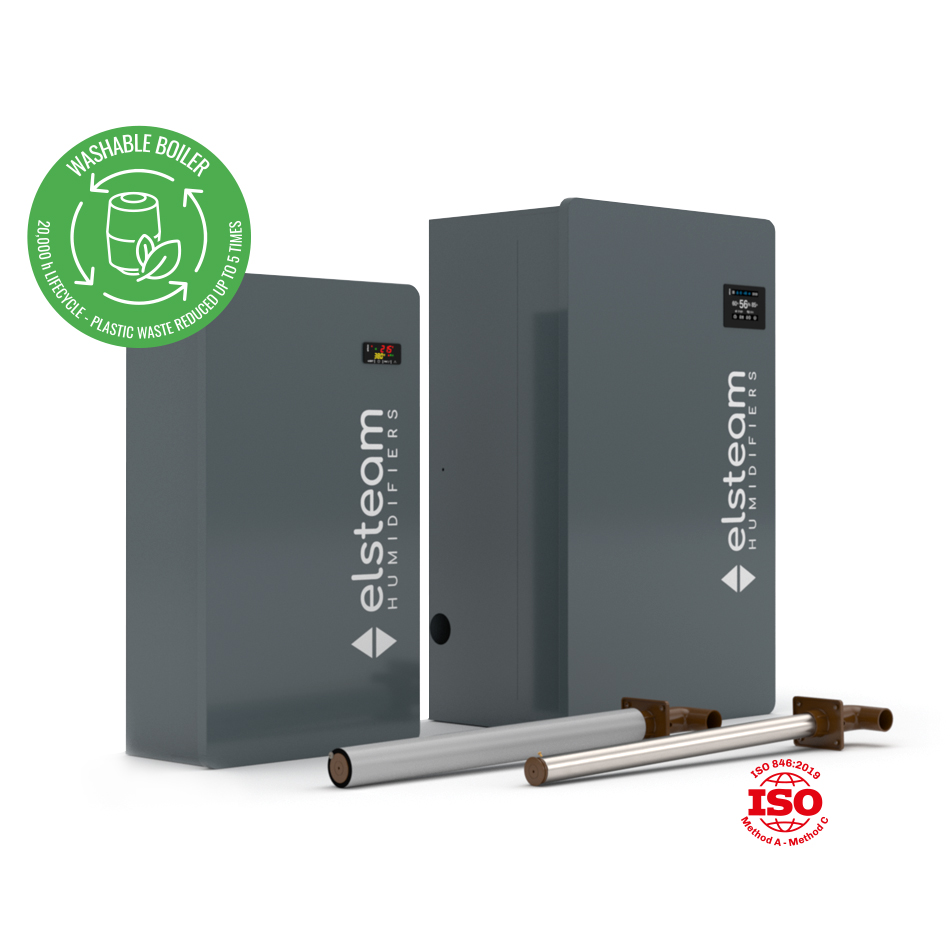

Versatile
Compact stand-alone unit suitable for many applications
Energy efficiency
Boilers, linear distributors and steam blowers available with reduced thermal transmittance
Saves water
The operation algorithm ensures only the amount of steam required is produced, optimising water consumption
Accurate
The new operation algorithm, together with a wide variety of boilers, ensures precision control, irrespective of the characteristics of the water
Rapid
Steam is produced in a short amount of time
- The siphon circuit protects against boiler overpressure and its value can be modified on request with an optional kit
- Pump-driven draining system which breaks the limescale deposit into small pieces for easy ejection
- Automatic boiler cleaning system
- Mechanical parts designed to simplify use and maintenance
- Boiler circuit and polymeric parts of the linear steam distributors are in self-extinguishing material
- Protection against water escaping on the steam side
- No mechanical obstructions on the steam side and drain side
Steam distribution systems
Linear distributors for ducts
Extruded linear distributor with reduced thermal transmittance
The surface in non-porous, waterproof engineering plastic prevents bacterial proliferation and complies with Method A and Method C of ISO846. It withstands sudden changes in temperature and chemicals, thus making it easy to sterilise.
Stainless steel linear distributor
Stainless steel is a very hygienic material as it is corrosion resistant and its surface is compact and non-porous, making removing bacteria during cleaning and sterilisation easier.
Steam blower for room
This steam blower, which delivers steam directly into the room, is made of engineering plastic which prevents bacterial contamination and withstands chemical attack. Thanks to its thermal insulation, it is also energy efficient. The blower can be fitted directly onto the humidifier or placed in the room, according to the manufacturer’s instructions, using a special mobile support.
Ideal in the following applications
| EHKT models (EV3 display) | 003M2 | 005M2 | 003T2 | 005T2 | 003T4 | 005T4 | 010T2 | 010T4 | 015T2 | 015T4 |
|---|---|---|---|---|---|---|---|---|---|---|
| EHKX models (EPcolor display) | 003M2 | 005M2 | 003T2 | 005T2 | 003T4 | 005T4 | 010T2 | 010T4 | 015T2 | 015T4 |
| STEAM PRODUCTION | ||||||||||
| Production capacity [kg/h] | 3 | 5 | 3 | 5 | 3 | 5 | 10 | 10 | 15 | 15 |
| Maximum pressure [mm H2O/Pa/bar] | 165/1650/0,0165 | |||||||||
| Pipe connection external diameter [mm] | 38 | |||||||||
| STEAM DISTRIBUTION | ||||||||||
| Number of linear distributors that can be connected [n] | 1 | |||||||||
| Number of steam blowers that can be connected [n] | 1 | |||||||||
| ELECTRICAL PROPERTIES | ||||||||||
| Power consumption [kW] | 2.2 | 3.75 | 2.2 | 3.75 | 2.2 | 3.75 | 7.5 | 7.5 | 11.3 | 11.3 |
| Power supply [VAC, Hz] | 230, 50/60 | 400, 50/60 | 230, 50/60 | 400, 50/60 | 230, 50/60 | 400, 50/60 | ||||
| Phases [n] | 1 | 1 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Current per phase [A] | 9.6 | 16.3 | 5.5 | 9.4 | 3.2 | 5.4 | 18.8 | 10.8 | 28.4 | 16.3 |
| WATER PROPERTIES | ||||||||||
| Inlet water quality | Complies with microbiological standards for drinking water established by regulations in force where installed. Partially demineralised water may be used | |||||||||
| Inlet water conductivity [μS*cm] | 70…1250 | |||||||||
| Inlet water hardness [°f] | 5...50 | |||||||||
| Inlet water pressure [MPa/bar] | 0,2...1/2...10 | |||||||||
| Inlet water connection | M 3/4"GAS | |||||||||
| Water drain external dimensions [mm] | 40 | |||||||||
| GENERAL CHARACTERISTICS | ||||||||||
| Dimensions (WxHxD [mm]) | 412x766x248 | |||||||||
| Degree of protection | IP20 | |||||||||
| REGULATION | ||||||||||
| Type of controller | Built-in EHKT version: simplified with EV3 user interface, EHKX version: state-of-the-art version with EPcolor user interface | |||||||||
| Command signal [proportional (0-10 V) or ON-OFF] | ON/OFF-proportional 0-10V-probes 0-10V/4... 20 mA | |||||||||
| Connectivity | RS485-MODBUS-WI-FI SUPERVISION | |||||||||
| EHKT models (EV3 display) | 020T2 | 020T4 | 030T4 | 040T4 | 060T4 | ||
|---|---|---|---|---|---|---|---|
| EHKX models (EPcolor display) | 020T2 | 020T4 | 030T4 | 040T4 | 060T4 | 080T4 | 100T4 |
| STEAM PRODUCTION | |||||||
| Production capacity [kg/h] | 20 | 20 | 30 | 40 | 60 | 80 | 100 |
| Maximum pressure [mm H2O/Pa/bar] | 200/2000/0,020 | ||||||
| Pipe connection external diameter [mm] | 38 | ||||||
| STEAM DISTRIBUTION | |||||||
| Number of linear distributors that can be connected [n] | 1 | 2 | |||||
| Number of steam blowers that can be connected [n] | 2 | ||||||
| ELECTRICAL PROPERTIES | |||||||
| Power consumption [kW] | 15 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Power supply [VAC, Hz] | 230, 50/60 | 400, 50/60 | 400, 50/60 | 230, 50/60 | |||
| Phases [n] | 3 | ||||||
| Current per phase [A] | 37.7 | 21.7 | 32.5 | 43.3 | 65 | 86.6 | 108.3 |
| WATER PROPERTIES | |||||||
| Inlet water quality | Complies with microbiological standards for drinking water established by regulations in force where installed. Partially demineralised water may be used | ||||||
| Inlet water conductivity [μS*cm] | 70…1250 | ||||||
| Inlet water hardness [°f] | 5...50 | ||||||
| Inlet water pressure [MPa/bar] | 0,2...1/2...10 | ||||||
| Inlet water connection | M 3/4"GAS | ||||||
| Water drain external dimensions [mm] | 40 | ||||||
| GENERAL CHARACTERISTICS | |||||||
| Dimensions (WxHxD [mm]) | 522x893x380 | 928x900x375 | |||||
| Degree of protection | IP20 | ||||||
| REGULATION | |||||||
| Type of controller | Built-in EHKT version: simplified with EV3 user interface, EHKX version: state-of-the-art version with EPcolor user interface | ||||||
| Command signal [proportional (0-10 V) or ON-OFF] | ON/OFF-proportional 0-10V-probes 0-10V/4... 20 mA | ||||||
| Connectivity | RS485-MODBUS-WI-FI SUPERVISION | ||||||
| Linear steam distributors | |
|---|---|
| EHSD040T | linear steam distrubutor 400 mm long |
| EHSD060T | linear steam distrubutor 600 mm long |
| EHSD080T | linear steam distrubutor 800 mm long |
| EHSD100T | linear steam distrubutor 1.000 mm long |
| EHSD130T | linear steam distrubutor 1.300 mm long |
| EHSD160T | linear steam distrubutor 1.600 mm long |
| EHSD200T | linear steam distrubutor 2.000 mm long |
| EHSDP000 | linear steam distrubutor, measure on request |
| EHSD040X | linear steam distributor with thermal efficiency 400 mm long |
| EHSD060X | linear steam distributor with thermal efficiency 600 mm long |
| EHSD080X | linear steam distributor with thermal efficiency 800 mm long |
| EHSD100X | linear steam distributor with thermal efficiency 1.000 mm long |
| EHSD130X | linear steam distributor with thermal efficiency 1.300 mm long |
| EHSD160X | linear steam distributor with thermal efficiency 1.600 mm long |
| EHSD200X | linear steam distributor with thermal efficiency 2.000 mm long |
| EHSDP000X | linear steam distributor with thermal efficiency, measure on request |
| EHSDW022 | linear steam distributor with 22 mm nozzles |
| EHSDY038 | Y-shaped steam distribution fitting |
| EHSDC038 | right angle-shaped steam distribution fitting |
| EHTV038 | special steam piping that connects the humidifier and distributor (per meter) |
| EHVI | drainage tank Zephyr, KT, VEH and REH series humidifier |
| Boilers | |
| EHBK005M00M | boiler for EHKT003/EHKX003 and EHKT005/EHKX005 power supply 1 phase |
| EHBK005MLCM | low conductivity boiler for EHKT003/EHKX003 and EHKT005/EHKX005 power supply 1 phase |
| EHBK005MHCM | high conductivity boiler for EHKT003/EHKX003 and EHKT005/EHKX005 power supply 1 phase |
| EHBK005T00M | boiler for EHKT003/EHKX003 and EHKT005/EHKX005 power supply 3 phases |
| EHBK005TLCM | low conductivity boiler for EHKT003/EHKX003 and EHKT005/EHKX005 power supply 3 phases |
| EHBK005THCM | high conductivity boiler for EHKT003/EHKX003 and EHKT005/EHKX005 power supply 3 phases |
| EHBK015T00M | boiler for EHKT010/EHKX010 and EHKT015/EHKX015 |
| EHBK015TLCM | low conductivity boiler for EHKT010/EHKX010 and EHKT015/EHKX015 |
| EHBK015THCM | high conductivity boiler for EHKT010/EHKX010 and EHKT015/EHKX015 |
| EHBK040T00L | boiler for EHKT020/EHKX020, EHKT030/EHKX030, EHKT040/EHKX040, EHKT060/EHKX060 (order 2) and EHKT080/EHKX080 (order 2) |
| EHBK040TLCL | low conductivity boiler for EHKT020/EHKX020, EHKT030/EHKX030, EHKT040/EHKX040, EHKT060/EHKX060 (order 2) and EHKT080/EHKX080 (order 2) |
| EHBK040THCL | high conductivity boiler for EHKT020/EHKX020, EHKT030/EHKX030, EHKT040/EHKX040, EHKT060/EHKX060 (order 2) and EHKT080/EHKX080 (order 2) |
| EHBK050T00L | boiler for EHKX100 (order 2) |
| EHBK050TLCL | low conductivity boiler for EHKX100 (order 2) |
| EHBK050THCL | high conductivity boiler for EHKX100 (order 2) |
| EHBKISOL00S | insulating cover for small boiler for EHKT003/EHKX003 and EHKT005/EHKX005 |
| EHBKISOL00M | insulating cover for boiler for EHKT003/EHKX003, EHKT005/EHKX005, EHKT010/EHKX010 and EHKT015/EHKX015 |
| EHBKISOL00L | insulating cover for EHKT020/EHKX020, EHKT030/EHKX030 and EHKT040/EHKX040 |
| Controls | |
| EV3411M7 | single output electronic controller, power supply 230 VAC, multi-sensor analog input |
| EVHTP520 | humidity and temperature probe, proprietary signal |
| EVHP523 | humidity transducer, power supply 8... 28 VDC, 1 x 4-20 mA provided signal |
| EVHTP523 | humidity and temperature transducer, power supply 8... 28 VDC, 2 x 4-20 mA provided signal |
| EVTPNW30F200 | NTC probe, 2 wires thermoplastic cable 3 m lenght, 5x20 mm overmoulded bulb, IP68 protection |
| EVIF25TW4X0001 | TTL module with Wi-Fi connectivity + real time clock |
| Various | |
| 0031000048 | 0.3 m long flexible hose ¾ " GAS female that connects the mains water and solenoid valve to load water |
| EHFILLTANK | tank filling kit for high/low pressure |
| EH090DRAIN | right-angled drain bend diameter 40 mm |
| EHKTBOTTOM15 | metal base for floor installation for EHKT003/EHKX003, EHKT005/EHKX005, EHKT010/EHKX010 and EHKT015/EHKX015 |
| EHKTBOTTOM40 | metal base for floor installation for EHKT020/EHKX020, EHKT030/EHKX030 and EHKT040/EHKX040 |
| EHKTBOTTOM100 | metal base for floor installation for EHKT060/EHKX060, EHKX080 and EHKX100 |
| EHKBLOCK15 | cable gland kit for EHKTBOTTOM15 |
| EHKBLOCK40 | cable gland kit for EHKTBOTTOM40 |
